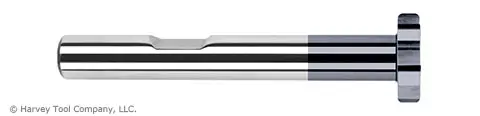

3/4 D x 1/8 W x .030 R KEYSEAT, AlTiN

Part Number: 336905250-C3
Manufacturers Name: Milling Specialty Profiles
Manufacturers Part #: 905250-C3
$179.40
$179.40 EA
Quantity EA
ADD TO CARTQUOTE VOLUME DISCOUNT

Product Details

0.7500" (3/4) Cutter DIA x 0.0300" Radius x 0.1250" (1/8) Width Carbide Corner Radius Large Diameter Standard Keyseat Cutter, 10 Flutes, AlTiN Coated
Features
  • This product can expose you to chemicals including cobalt which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Specifications
  • Profile: Corner Radius
  • Metric Flag: N10
  • Cutting Diameter: 0.7500" (3/4)
  • Flute Count: N10
  • Overall Length: 3.1250" (3-1/8)
  • Corner Radius: 0.0300"
  • Shank Diameter: 0.3750" (3/8)
  • Shank Length: 3.0000" (3)
  • Radial Depth of Cut: 0.1770"
  • Cutter Width: 0.1250" (1/8)
