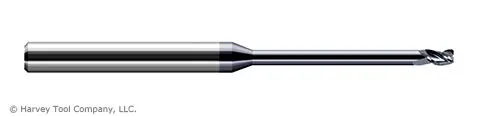

.100 D x .005 R STB FL 8x RCH EM, AlTiN

Part Number: 33638400-C3
Manufacturers Name: Miniature End Mills
Manufacturers Part #: 38400-C3
$54.70
$54.70 EA
Quantity EA
ADD TO CARTQUOTE VOLUME DISCOUNT

Product Details

0.1000" Cutter DIA x 0.0050" Radius x 0.1500" Length of Cut x 0.8000" Reach Carbide Corner Radius End Mill, 3 Flutes, AlTiN Coated
Features
  • This product can expose you to chemicals including cobalt which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Specifications
  • Profile: Corner Radius
  • Metric Flag: 0
  • Cutting Diameter: 0.1000"
  • Flute Count: N3
  • Overall Length: 2.5000" (2-1/2)
  • Corner Radius: 0.0050"
  • Shank Diameter: 0.1250" (1/8)
  • Length of Cut: 0.1500"
  • Neck Diameter: 0.0985"
  • Overall Reach: 0.8000"
