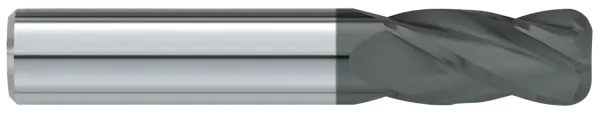

3mm EM 0.5mm C/R **DIAMOND**

Part Number: 29924118
Manufacturers Name: GARR Tool
Manufacturers Part #: 24118
$90.99
$90.99 EA
Quantity EA
ADD TO CARTQUOTE VOLUME DISCOUNT

Product Details

Features
  • Solid grade C-2 carbide end mill - center cutting
  • Crystalline diamond coating
  • Up to 17 times tool life versus uncoated end mills
  • For graphite, fiber-reinforced plastics, carbon fiber and high silicon aluminum
  • Radius tolerance +.001"-.001" (+.025-.025mm)
Specifications
  • Series: 210RD
  • Decimal Diameter: 0.1181
  • End Style: Corner Radius
  • Cutting Diameter: 3.0mm
  • Number of Flutes: 4
  • Coating: DIAMD
  • Overall Length: 38mm
  • Shank Diameter: N3
  • Corner Radius: 0.5
  • Flat: W/O Flat
  • Length of Cut: 12mm
  • Single End/Double End: Single End
  • Helix Angle: N30
