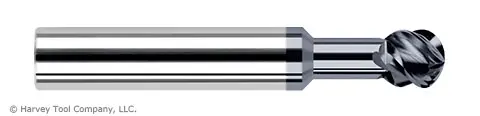

1/16 D x 270 LR UNDERCUT, 45 HLX, AlTiN

Part Number: 336951162-C3
Manufacturers Name: Milling Specialty Profiles
Manufacturers Part #: 951162-C3
$62.60
$62.60 EA
Quantity EA
ADD TO CARTQUOTE VOLUME DISCOUNT

Product Details

0.0625" (1/16) Cutter DIA x 0.0930" (3/32) Neck Length x 270° Carbide Undercutting End Mill, 2 Flutes, AlTiN Coated
Features
  • This product can expose you to chemicals including cobalt which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Specifications
  • Profile: Spherical
  • Metric Flag: 0
  • Cutting Diameter: 0.0625" (1/16)
  • Flute Count: N2
  • Overall Length: 1.5000" (1-1/2)
  • Neck Length: 0.0930" (3/32)
  • Shank Diameter: 0.1250" (1/8)
  • Length of Cut: 0.0530"
  • Neck Diameter: 0.0370"
  • Wrap Angle: 270
  • Radius: 0.0312" (1/32)
  • Overall Reach: 0.1460"
