.083 D x 48 DEG INCL CARB DOVETAIL, 2 FL

Part Number: 33623914
Manufacturers Name: Milling Specialty Profiles
Manufacturers Part #: 23914
$81.40
$81.40 EA
Quantity EA
ADD TO CARTQUOTE VOLUME DISCOUNT

Product Details

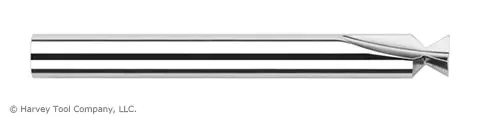

0.0830" Cutter DIA x 0.0150" (1/64) Radius x 48° included Carbide Dovetail Cutter without Drop Hole Allowance, 2 Flutes
Features
  • This product can expose you to chemicals including cobalt which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Specifications
  • Profile: Dovetail
  • Metric Flag: 0
  • Cutting Diameter: 0.0830"
  • Flute Count: N2
  • Overall Length: 1.5000" (1-1/2)
  • Corner Radius: 0.0150" (1/64)
  • Shank Diameter: 0.1250" (1/8)
  • Length of Cut: 0.0850"
  • O Ring X Section: 0.1030"
  • Neck Diameter: 0.0240"
  • Included Angle: N48
