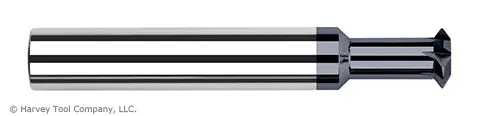

1/16D x 90DEG x .005 R CARB DASC, AlTiN

Part Number: 33645804-C3
Manufacturers Name: Milling Specialty Profiles
Manufacturers Part #: 45804-C3
$83.98
$83.98 EA
Quantity EA
ADD TO CARTQUOTE VOLUME DISCOUNT

Product Details

0.0620" (1/16) Cutter DIA x 0.0050" Radius x 0.0350" Width x 0.0930" (3/32) Neck Length Carbide Double Angle Shank Cutter, 2 Flutes
Features
  • This product can expose you to chemicals including cobalt which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Specifications
  • Profile: Tip Radius
  • Metric Flag: 90
  • Cutting Diameter: 0.0620" (1/16)
  • Flute Count: N2
  • Overall Length: 1.5000" (1-1/2)
  • Neck Length: 0.0930" (3/32)
  • Shank Diameter: 0.1250" (1/8)
  • Neck Diameter: 0.0310" (1/32)
  • Included Angle: 90
  • Angle Per Side: N45
  • Radius: 0.0050"
  • Cutter Width: 0.0350"
