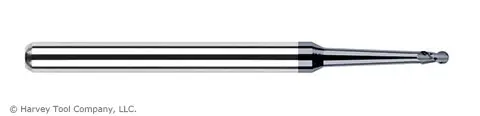

.093 BALL x 2.0 RCH CLEAR 2FL AlTiN Nano

Part Number: 33618893-C6
Manufacturers Name: Miniature End Mills
Manufacturers Part #: 18893-C6
$118.08
$118.08 EA
Quantity EA
ADD TO CARTQUOTE VOLUME DISCOUNT

Product Details

0.0930" (3/32) Cutter DIA x 0.1400" (9/64) Length of Cut x 2° 2.0000" (2) Taper Reach Carbide Ball End Mill, 2 Flutes, AlTiN Nano Coated
Features
  • This product can expose you to chemicals including cobalt which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Specifications
  • Profile: Ball
  • Metric Flag: 0
  • Cutting Diameter: 0.0930" (3/32)
  • Flute Count: N2
  • Overall Length: 4.0000" (4)
  • Neck Length: 0.1395"
  • Shank Diameter: 0.2500" (1/4)
  • Length of Cut: 0.1400" (9/64)
  • Neck Diameter: 0.1900"
  • Neck Angle: N2
  • Overall Reach: 2.0000" (2)
  • Tapered Reach: 1.7500" (1-3/4)
  • Minor Diameter: 0.0850"
