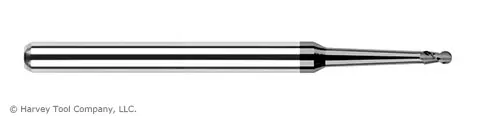

.062 BALL x 2.0 RCH CLEAR 2FL DIAMOND

Part Number: 33618862-C4
Manufacturers Name: Miniature End Mills
Manufacturers Part #: 18862-C4
$134.42
$134.42 EA
Quantity EA
ADD TO CARTQUOTE VOLUME DISCOUNT

Product Details

0.0620" (1/16) Cutter DIA x 0.0930" (3/32) Length of Cut x 2° 2.0000" (2) Taper Reach Carbide Ball End Mill, 2 Flutes, Amorphous Diamond Coated
Features
  • This product can expose you to chemicals including cobalt which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Specifications
  • Profile: Ball
  • Metric Flag: 0
  • Cutting Diameter: 0.0620" (1/16)
  • Flute Count: N2
  • Overall Length: 4.0000" (4)
  • Neck Length: 0.0930" (3/32)
  • Shank Diameter: 0.2500" (1/4)
  • Length of Cut: 0.0930" (3/32)
  • Neck Diameter: 0.1680"
  • Neck Angle: N2
  • Overall Reach: 2.0000" (2)
  • Tapered Reach: 1.7500" (1-3/4)
  • Minor Diameter: 0.0570"
