Home › Milling › Solid Milling › High Performance Solid Carbide End Mills › 1/2x4x1-1/2" TMS 9FL SQ *AlCrN
Click image to enlarge

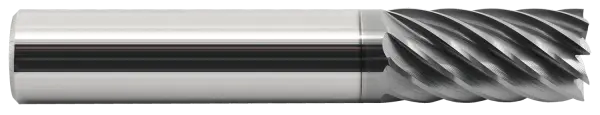

1/2x4x1-1/2" TMS 9FL SQ *AlCrN

Part Number: 29998452
Manufacturers Name: GARR Tool
Manufacturers Part #: 98452
$82.72
$82.72 EA
Quantity EA
ADD TO CARTQUOTE VOLUME DISCOUNT

Product Details

Features
  • Solid submicron grain carbide end mill - Non center cutting
  • Engineered for Titanium
  • Multiple flutes for increased feed rates
  • Odd number of flutes to naturally break up harmonics
  • Effective for Trochoidal milling
  • Up to 5% Radial (ap) engagement
  • Can be used to finish most steels under 40Rc, as well as aluminum
  • Conventional grind for better finish cutting and less push off
  • Regrindable
Specifications
  • Series: TMS
  • Decimal Diameter: 0.5
  • End Style: Square End
  • Cutting Diameter: 1/2
  • Number of Flutes: 9
  • Coating: ALCRO
  • Overall Length: 4
  • Shank Diameter: 0.5
  • Flat: W/O Flat
  • Length of Cut: 1-1/2
  • Single End/Double End: Single End
  • Helix Angle: N38
