Home › Milling › Solid Milling › High Performance Ball End Solid Carbide End Mills › .031 BALL V-HELIX MA, 8x RCH, AlTiN
Click image to enlarge

.031 BALL V-HELIX MA, 8x RCH, AlTiN

Part Number: 33656631-C3
Manufacturers Name: Solid Milling
Manufacturers Part #: 56631-C3
$69.50
$69.50 EA
Quantity EA
ADD TO CARTQUOTE VOLUME DISCOUNT

Product Details

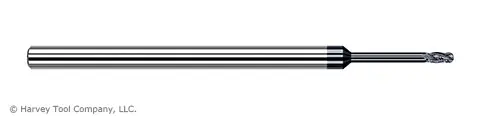

0.0310" (1/32) Cutter DIA x 0.0460" Length of Cut x 0.2500" (1/4) Reach Carbide Ball End Mill for Medium Alloy Steels, 4 Flutes, AlTiN Coated
Features
  • This product can expose you to chemicals including cobalt
  • ^ which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Specifications
  • Profile: Ball
  • Metric Flag: 0
  • Cutting Diameter: 1/32
  • Number of Flutes: N4
  • Coating: AlTiN
  • Overall Length: 2.5000" (2-1/2)
  • Shank Diameter: 0.1250" (1/8)
  • Length of Cut: 0.0460
  • Neck Diameter: 0.0300"
  • Overall Reach: 0.2500" (1/4)
