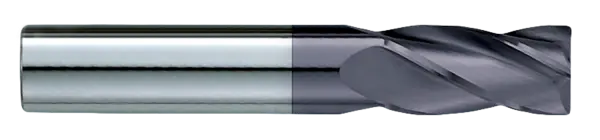

Garr Tool Carbide Square End Mill 1/2 Inch 4FL TiAIN

Part Number: 29913317
Manufacturers Name:
Manufacturers Part #: 13317
$45.51
$45.51 EA
Quantity EA
ADD TO CARTQUOTE VOLUME DISCOUNT

Product Details

This Garr Tool ½ inch solid carbide square end mill comes with a Titanium Aluminum Nitride (TiAIN) finish, which improves the tool life and allows for an faster cycle time.  Garr Tool manufactures a variety of solid carbide cutting tools, including drills, taps, reamers, end mills, & more. Order your Garr Tool End Mill Today!

Other Sizes and Options available here!
Features
  • Solid submicron grain carbide end mill - center cutting
  • 30 degree helix - rhs/rhc
  • Up to 40% faster than uncoated
  • Dry or semi-dry machining
Specifications
  • Series: 230MA
  • Decimal Diameter: 0.5
  • End Style: Square End
  • Cutting Diameter: 1/2
  • Number of Flutes: 4
  • Coating: TiAlN
  • Overall Length: 3
  • Shank Diameter: 0.5
  • Flat: W/O Flat
  • Length of Cut: 1
  • Single End/Double End: Single End
  • Helix Angle: 30 Degree
