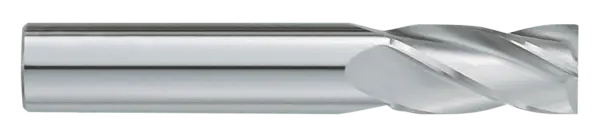

3mm STUB EM SQ 4 FLUTE S/E SMG

Part Number: 29902550
Manufacturers Name: GARR Tool
Manufacturers Part #: 02550
$8.18
$8.18 EA
Quantity EA
ADD TO CARTQUOTE VOLUME DISCOUNT

Product Details

Features
  • Solid submicron grain carbide end mill - center cutting
  • Shorter flute length for rigidity
  • 30 degree helix - rhs/rhc
Specifications
  • Series: 870M
  • Decimal Diameter: 0.1181
  • End Style: Square End
  • Cutting Diameter: 3.0mm
  • Number of Flutes: 4
  • Coating: Uncoated
  • Overall Length: 38mm
  • Shank Diameter: 3
  • Flat: W/O Flat
  • Length of Cut: 6mm
  • Single End/Double End: Single End
  • Helix Angle: 30 Degree
