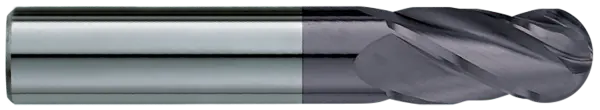

20mm STUB BALL EM 4F SE*TiALN*

Part Number: 29904687
Manufacturers Name: GARR Tool
Manufacturers Part #: 04687
$184.05
$184.05 EA
Quantity EA
ADD TO CARTQUOTE VOLUME DISCOUNT

Product Details

Features
  • Solid submicron grain carbide end mill - center cutting
  • Shorter flute length for rigidity
  • Dry or semi-dry machining
  • Up to 40% faster than uncoated
  • Ball radius tolerance +.000-.001" (+.000-.025mm)
Specifications
  • Series: 990MA
  • Decimal Diameter: 0.7874
  • End Style: Ball End
  • Cutting Diameter: 20.0mm
  • Number of Flutes: 4
  • Coating: TiAlN
  • Overall Length: 75mm
  • Shank Diameter: 20
  • Flat: W/O Flat
  • Length of Cut: 25mm
  • Single End/Double End: Single End
  • Helix Angle: N30
