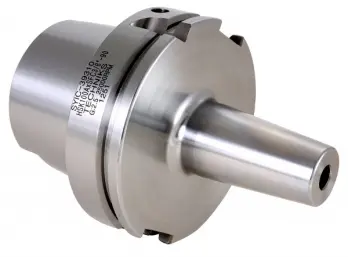

HSK100A x 1-1/4" I.D. - 4.72"

Part Number: 82839326
Manufacturers Name: Techniks, Inc.
Manufacturers Part #: 39326
$482.00
$482.00 EA
Quantity EA
ADD TO CARTQUOTE VOLUME DISCOUNT

Product Details

HSK100A x 1-1/4" I.D. - 4.72" T.I.R. is 0.0001" or better. Balanced to 25,000 RPM at G2.5. High speed or high torque machining. Lab Certified for performance, comes with report. Tool life is extended by as much as 700%. Coolant-thru spindle w/ set screw standard.
Specifications
  • Nose Dia (in): 1.81
  • Overall Diameter (in): 3.94
  • Type: ShrinkFIT Tool Holder
  • Nose Dia (mm): N46
  • Overall Diameter (mm): 100
  • Body Dia (in): 2.09
  • Body Dia (mm): 53.09
  • Collet Series: N/A
  • Material: H13 Steel
  • Mount: HSK100A
  • Unit of Tool: Inch
  • Shank Range (in): Exact Size
  • Style: Single-Ended
  • Shank Range (mm): Exact Size
  • Shank Size (in): 1.25
  • Shank Size (mm): 31.75
  • Gage Length (in): 4.72
  • Gage Length (mm): 119.9
  • Gage Length-Face Contact (in): 4.72
  • Gage Length-Face Contact (mm): 119.9
  • Overall Length (in): 6.69
  • Overall Length (mm): 169.9
