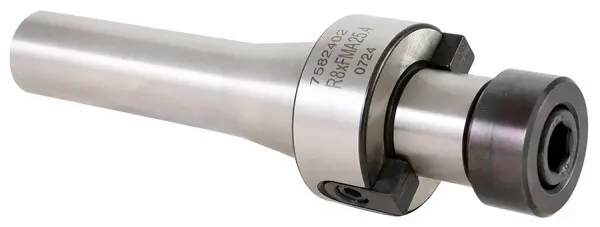

R8-FMA-1.0

Part Number: 8287582402
Manufacturers Name: Techniks, Inc.
Manufacturers Part #: 7582402
$131.04
$131.04 EA
Quantity EA
ADD TO CARTQUOTE VOLUME DISCOUNT

Product Details

R8-FMA-1.0 Techniks Face Mill Arbors has H6 arbor tolerance for less chatter. Lab certified for dimensional accuracy. The taper is ground to AT3 tolerance. Face Mills are CoolBLAST compatible for coolant through capability using a coolant arbor screw.
Specifications
  • Overall Diameter (in): 1.81
  • Type: Face Mill Arbor
  • Overall Diameter (mm): N46
  • Taper Type: R8
  • Body Width (in): 1.81
  • Body Width (mm): N46
  • Material: 8620 Steel
  • Style: Single Ended
  • Coolant Supply: Optional through Arbor Screw
  • Hub Diameter (in): N1
  • Hub Diameter (mm): 25.4
  • Gage Length (in): 4.85
  • Gage Length (mm): 123.2
  • Gage Length-Face Contact (in): 4.85
  • Gage Length-Face Contact (mm): 123.2
  • Pilot Length (in): 0.85
  • Pilot Length (mm): 21.6
