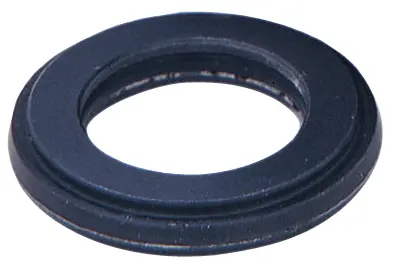

Black Gold ER40 Coolant Rings – Shank mm: 16.0 – 15.5mm – Shank inch: 5/8"

Part Number: 82808540-16.0
Manufacturers Name: Techniks, Inc.
Manufacturers Part #: 08540-16.0
$25.20
$25.20 EA
Quantity EA
ADD TO CARTQUOTE VOLUME DISCOUNT

Product Details

Black Gold ER40 Coolant Rings – Shank mm: 16.0 – 15.5mm – Shank inch: 5/8" Coolant Rings provide coolant on the tool path. Compatible with both Solid and Coolant-Thru Cutting Tools. Snap into the ER Nut to seal up to 1,500 PSI of Coolant, preventing contaminants. Oversizing achieves a CoolBLAST effect.
Specifications
  • Series: ER40
  • Capacity (in): 0.63 - 0.61
  • Capacity (mm): 16 - 15.5
  • Type2: Coolant Ring
  • Unit of Tool: Metric and Inch
  • Number of Pieces: N/A
  • Style: Dust Seal
  • Incremental Division: N/A
  • Shank Size (in): 0.63
  • Shank Size (mm): N16
  • Square Size (in): N/A
  • Square Size (mm): N/A
  • Tap Range (in): N/A
  • Tap Range (mm): N/A
  • Tap Size (in): N/A
  • Tap Size (mm): N/A
  • Overall Length (in): 1.311
  • Overall Length (mm): 33.3
