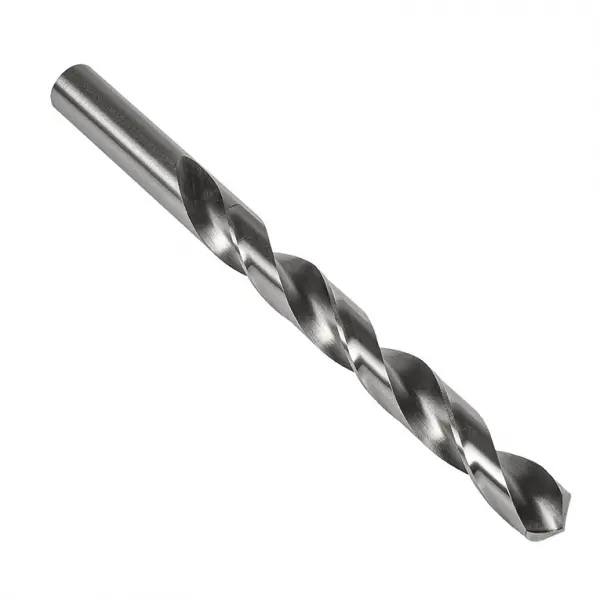

HSS Bright 118° Jobber Drill Jobber DIN 338 0.27 mm

Part Number: 6706000326
Manufacturers Name: Dormer Pramet
Manufacturers Part #: 6000326
Minimum order: 12 EA
$5.45
$5.45 EA
Quantity EA
ADD TO CARTQUOTE VOLUME DISCOUNT

Product Details

Bright Finish improves chip flow in soft or non-ferrous materials
Features
  • 118° Drill Point Angle
  • ^HSS (high speed steel) Material
  • ^Jobber Drill Length
  • ^Standard - RH End Shot
  • ^Bright Coating
  • ^Straight Shank
  • ^DIN 338 Drill Standard
Specifications
  • Drills Bit Size: 0.27 mm
  • Drills Bit Size (Decimal Inch): 0.0106
  • Drill Point Angle: 118
  • Body Material Code: High Speed Steel
  • Surface Treatment/Coating: Original surface/Bright Silver
  • Application Type: General Drilling
  • Coolant: External cooling supply
  • Cutting Direction: Right Hand
  • Spiral Form: Standard Spiral
  • Overall Length: N/A
  • Flute Length (mm): 3 mm
  • P - Steel and cast steel: Priority usage
  • M - Stainless steel: Possible usage
  • K - Cast iron: Priority usage
  • N - Non-ferrous metals: Priority usage
  • S - High-temperature alloys: Possible usage
  • Product Family Code: 2A
  • Shank Type: Cylindrical Shank
  • Drilling Depth: Depth 4 x d
  • Drill Length: Jobber
  • Country of Origin: France
