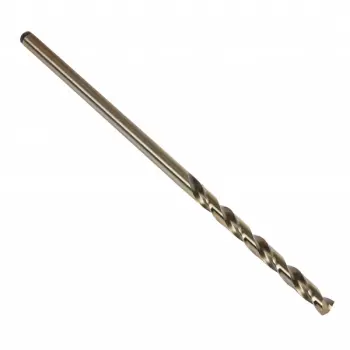

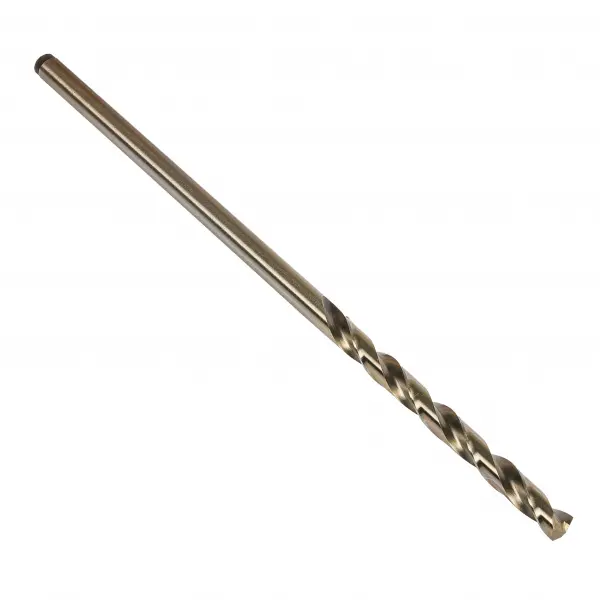

HSS-E Bronze 135° NAS907J Extra Length Aircraft Extension Drill Long NAS907 7/32 inch

Part Number: 6705995851
Manufacturers Name: Dormer Pramet
Manufacturers Part #: 5995851
Minimum order: 12 EA
$10.61
$10.61 EA
Quantity EA
ADD TO CARTQUOTE VOLUME DISCOUNT

Product Details

Low thrust design self centering 135° Split Point for easier penetration. Low thrust design. Cobalt base material with Bronze Oxide for wear resistance and lubricity. For enhanced tool life in ferrous materials.
Features
  • Straight Shank
  • ^Bronze Coating
  • ^135° Drill Point Angle
  • ^HSS-E (cobalt high speed steel) Material
  • ^WARNING: Cancer - www.P65Warnings.ca.gov
  • ^Split Point End Shot
  • ^NAS907 Drill Standard
  • ^Long Drill Length
Specifications
  • Drills Bit Size: 7/32
  • Drills Bit Size (Decimal Inch): 0.2188
  • Drill Point Angle: 135
  • Body Material Code: Cobalt
  • Surface Treatment/Coating: Steam Tempered/Bronze
  • Application Type: General Drilling
  • Coolant: External cooling supply
  • Cutting Direction: Right Hand
  • Overall Length: 6"
  • Flute Length (Inch): 2.1/2
  • P - Steel and cast steel: Priority usage
  • M - Stainless steel: Priority usage
  • K - Cast iron: Priority usage
  • N - Non-ferrous metals: Possible usage
  • S - High-temperature alloys: Priority usage
  • Product Family Code: CO500-6
  • Shank Type: Cylindrical Shank
  • Drilling Depth: Depth 4 x d
  • Drill Length: Long
  • Country of Origin: Brazil
