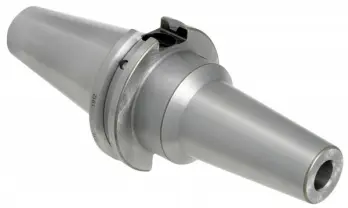

CAT40 ShrinkFIT x 3/16" I.D .- 5"

Part Number: 82829008

Manufacturers Name: Techniks, Inc.

Manufacturers Part #: 29008

$295.00

$295.00 EA

Quantity EA

ADD TO CART QUOTE VOLUME DISCOUNT

Product Details

CAT40 ShrinkFIT x 3/16" I.D .- 5" T.I.R. is 0.0001" or better. Balanced to 25,000 RPM at G2.5. High speed or high torque machining. Lab Certified for performance, comes with report. Tool life is extended by as much as 700%. Coolant-thru spindle w/ set screw standard.

Specifications

Nose Dia (in): 0.43
Overall Diameter (in): 2.5
Type: ShrinkFIT Tool Holder
Nose Dia (mm): 10.9
Overall Diameter (mm): 63.5
Body Dia (in): 0.71
Body Dia (mm): 18.03
Collet Series: N/A
Mount: CAT40
Material: H13 Steel
Unit of Tool: Inch
Shank Range (in): Exact Size
Style: Single-Ended
Shank Range (mm): Exact Size
Shank Size (in): 0.1875
Shank Size (mm): 4.76
Gage Length (in): N5
Gage Length (mm): 127
Gage Length-Face Contact (in): 4.88
Gage Length-Face Contact (mm): 123.83
Overall Length (in): 7.69
Overall Length (mm): 195.25
