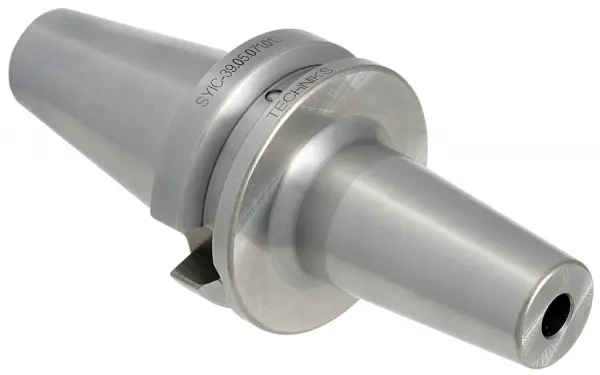

BT40 x 1/2"I.D. - 6"

Part Number: 82819028-6

Manufacturers Name: Techniks, Inc.

Manufacturers Part #: 19028-6

$294.00

$294.00 EA

Quantity EA

ADD TO CART QUOTE VOLUME DISCOUNT

Product Details

BT40 x 1/2"I.D. - 6" T.I.R. is 0.0001" or better. Balanced to 25,000 RPM at G2.5. High speed or high torque machining. Lab Certified for performance, comes with report. Tool life is extended by as much as 700%. Coolant-thru spindle w/ set screw standard.

Specifications

Nose Dia (in): 1.1
Overall Diameter (in): 2.48
Type: ShrinkFIT Tool Holder
Overall Diameter (mm): N63
Nose Dia (mm): 27.9
Body Dia (in): 1.34
Body Dia (mm): 34.04
Collet Series: N/A
Mount: BT40
Material: H13 Steel
Unit of Tool: Inch
Shank Range (in): Exact Size
Style: Single-Ended
Shank Range (mm): Exact Size
Shank Size (in): 0.5
Shank Size (mm): 12.7
Gage Length (in): N6
Gage Length (mm): 152.4
Gage Length-Face Contact (in): 5.92
Gage Length-Face Contact (mm): 150.4
Overall Length (in): 8.57
Overall Length (mm): 217.8
