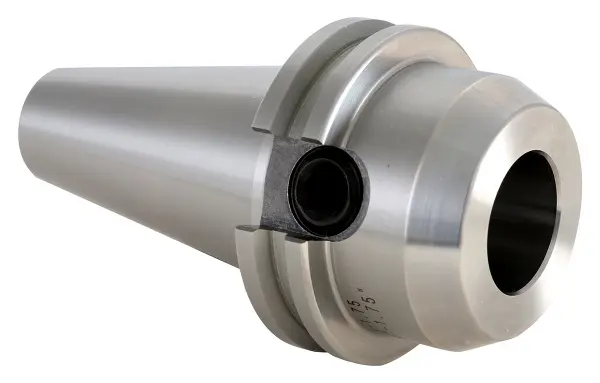

CAT40 Stubby – 3/4" Bore I.D. - 1.75"

Part Number: 82822921-1.75
Manufacturers Name: Techniks, Inc.
Manufacturers Part #: 22921-1.75
$94.32
$94.32 EA
Quantity EA
ADD TO CARTQUOTE VOLUME DISCOUNT

Product Details

CAT40 Stubby – 3/4" Bore I.D. - 1.75" Techniks End Mill Holders are machined to H5 I.D. tolerance. Stubby End Mills are balanced to 10,000 RPM to save spindle life. Taper is ground to AT3 for maximum spindle contact. Each holder is lab certified and comes with a performance report.
Specifications
  • Nose Diameter (in): 1.75
  • Type: End Mill Holder
  • Nose Diameter (mm): 44.5
  • Taper Type: CAT40
  • Bore I.D. (in): 0.75
  • Bore I.D. (mm): 19.1
  • Material: 8620 Steel
  • Style: Single End Stubby Length
  • Gage Length (in): 1.75
  • Gage Length (mm): 44.5
  • Overall Length (in): 4.44
  • Overall Length (mm): 112.7
