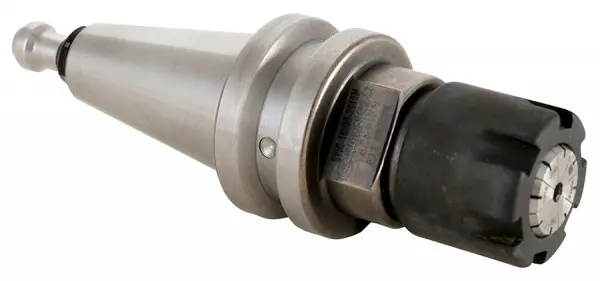

ISO 20 – ER20 - 52mm, slotted nut & pull stud

Part Number: 82816000-2520

Manufacturers Name: Techniks, Inc.

Manufacturers Part #: 16000-2520

$180.00

$180.00 EA

Quantity EA

ADD TO CART QUOTE VOLUME DISCOUNT

Product Details

ISO 20 – ER20 - 52mm, slotted nut & pull stud Techniks ISO Collet Chucks are balanced to 40,000 RPM at G2.5. Lab tested for accuracy and balance, includes performance report. Achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket. Taper is ground to AT3 accuracy.

Specifications

Overall Diameter (in): 1.18
Type: ISO 20 – ER20 - 52mm, slotted nut & pull stud
Overall Diameter (mm): N30
Body Dia-Workpiece Side (in): 1.339
Body Dia-Workpiece Side (mm): N34
Material: 8620 Steel
Unit of Tool: Metric or Inch
Lock Nut Diameter (in): 1.38
Style: Single Ended
Lock Nut Diameter (mm): 35.1
Gage Length (in): 2.05
Gage Length (mm): N52
Taper: ISO20
Gage Length-Face Contact (in): 1.97
Gage Length-Face Contact (mm): N50
Capacity Range (in): 0.019" - 0.55"
Capacity Range (mm): 0.5 - 14mm
Overall Length (in): 3.36
Balanced to: 40,000 RPM at G2.5
Overall Length (mm): 85.3
