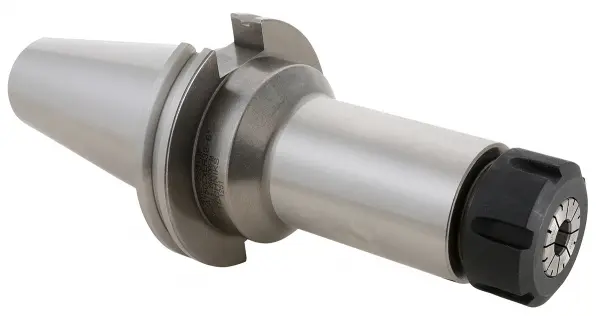

CAT50 – ER16 - 4", hex nut

Part Number: 82822281F

Manufacturers Name: Techniks, Inc.

Manufacturers Part #: 22281F

$203.04

$203.04 EA

Quantity EA

ADD TO CART QUOTE VOLUME DISCOUNT

Product Details

CAT50 – ER16 - 4", hex nut CoolFLEX Collet Chuck offer coolant either through the spindle or flange (DIN B). Remove stop screws for DIN B. Balanced to 25,000 RPM at G2.5 with T.I.R. of 0.0001". Techniks Certified for accuracy and balance and comes with a lab report.

Specifications

Overall Diameter (in): 3.88
Type: CAT50 – ER16 - 4", hex nut
Body Dia-Workpiece Side (in): 1.102
Overall Diameter (mm): 98.43
Body Dia-Workpiece Side (mm): N28
Material: 8620 Steel
Unit of Tool: Metric or Inch
Lock Nut Diameter (in): 1.26
Style: Single Ended
Lock Nut Diameter (mm): N32
Gage Length (in): N4
Gage Length (mm): 101.6
Taper: CAT50
Gage Length-Face Contact (in): 3.87
Gage Length-Face Contact (mm): 98.2
Capacity Range (in): 0.019" - 0.41"
Capacity Range (mm): 0.5 - 10.5mm
Overall Length (in): N28
Balanced to: 25,000 RPM at G2.5
Overall Length (mm): 203.2
