Techniks 1/2" SlimFIT 6 6" extension

Part Number: 82806034

Manufacturers Name: Techniks, Inc.

Manufacturers Part #: 6034

$182.88

$182.88 EA

Quantity EA

ADD TO CART QUOTE VOLUME DISCOUNT

Product Details

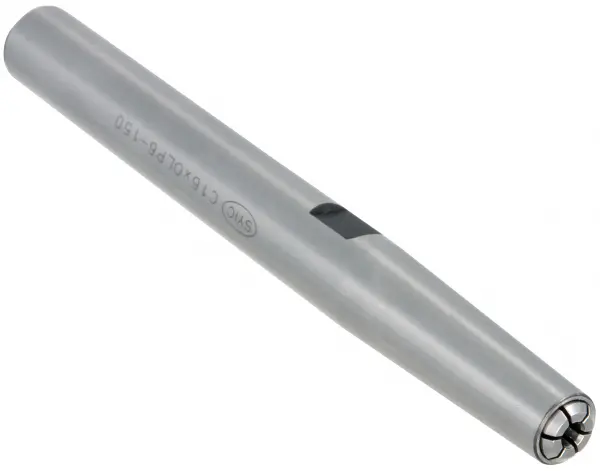

Techniks 1/2" SlimFIT 6 6" extension Extend the reach of existing tooling. SlimFIT Extensions are lab tested, inspected, and certified for quality. Balanced to 25,000 RPM at G2.5 Tolerance. T.I.R. is 0.0001" or better. Coolant-thru is standard. 100% Performance Guarantee

Specifications

Overall Diameter (in): 0.5
Nose Dia (in): 0.55
Type: SlimFIT Extension
Nose Dia (mm): N14
Overall Diameter (mm): 12.7
Body Dia (in): 0.5
Body Dia (mm): 12.7
Collet Series: SlimFIT 6
Mount: 1/2" Straight Shank
Material: H13 Steel
Unit of Tool: Inch
Shank Range (in): 0.094 - 0.25
Style: Straight Shank
Shank Range (mm): 2.39 - 6.35
Shank Size (in): N/A
Shank Size (mm): N/A
Gage Length (in): 1.89
Gage Length (mm): N48
Gage Length-Face Contact (in): N/A
Gage Length-Face Contact (mm): N/A
Overall Length (in): N6
Overall Length (mm): 152.4
