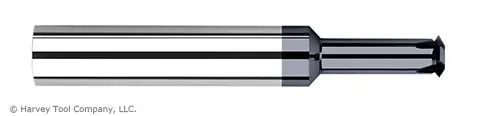

1/2 THD CARB MILL CUTTER, XXL RCH AlTiN

Part Number: 336993970-C3
Manufacturers Name: Solid Carbide Thread Milling Cutters
Manufacturers Part #: 993970-C3
$172.40
$172.40 EA
Quantity EA
ADD TO CARTQUOTE VOLUME DISCOUNT

Product Details

0.3880" Cutter DIA x 2.2500" (2-1/4) Reach Carbide Single Form #1/2 Thread Milling Cutter, 4 Flutes, AlTiN Coated
Features
  • This product can expose you to chemicals including cobalt which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Specifications
  • Profile: Single Form
  • Metric Flag: N60
  • Cutting Diameter: 0.3880"
  • Flute Count: N4
  • Overall Length: 4.0000" (4)
  • Shank Diameter: 0.5000" (1/2)
  • Length of Cut: 0.0800"
  • Size: 43102
  • Neck Diameter: 0.2500" (1/4)
  • Included Angle: N60
  • Maximum Depth of Thread: 2.2500" (2-1/4)
