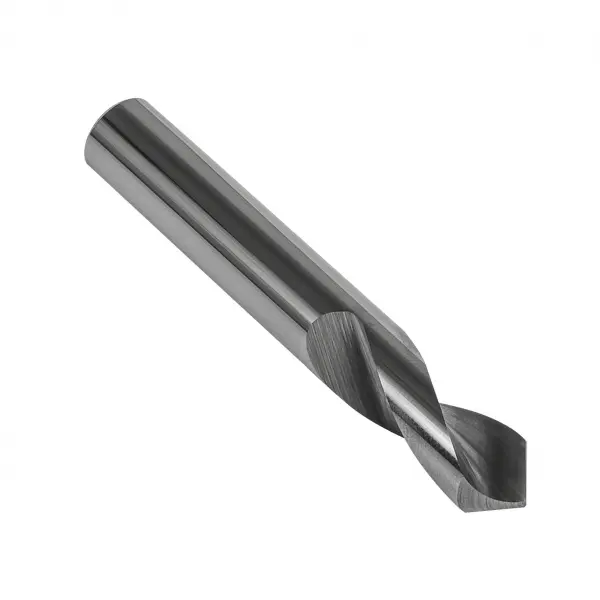

HM Bright 90° Spotting Drill Intermediate Precision 5/16 inch

Part Number: 6706002232
Manufacturers Name: Dormer Pramet
Manufacturers Part #: 6002232
$42.34
$42.34 EA
Quantity EA
ADD TO CARTQUOTE VOLUME DISCOUNT

Product Details

Provides spot location or chamfer for follow-up drilling operations
Features
  • Standard - RH End Shot
  • ^Bright Coating
  • ^Straight Shank
  • ^WARNING: Cancer - www.P65Warnings.ca.gov
  • ^Precision Drill Standard
  • ^HM Material
  • ^Intermediate Drill Length
  • ^Point Angle 90°
Specifications
  • Drills Bit Size: 5/16
  • Drills Bit Size (Decimal Inch): 0.3125
  • Drill Point Angle: 90
  • Body Material Code: Solid Carbide
  • Surface Treatment/Coating: Original surface/Bright Silver
  • Application Type: Spotting Drills
  • Coolant: External cooling supply
  • Cutting Direction: Right Hand
  • Overall Length: 2.1/2
  • Flute Length (Inch): 1"
  • P - Steel and cast steel: Priority usage
  • M - Stainless steel: Priority usage
  • K - Cast iron: Priority usage
  • N - Non-ferrous metals: Priority usage
  • S - High-temperature alloys: Priority usage
  • H - Hardened materials: Priority usage
  • Product Family Code: DS-90
  • Shank Type: Cylindrical Shank
  • Drilling Depth: Depth 1 x d
  • Drill Length: Intermediate
  • Country of Origin: United States of America
