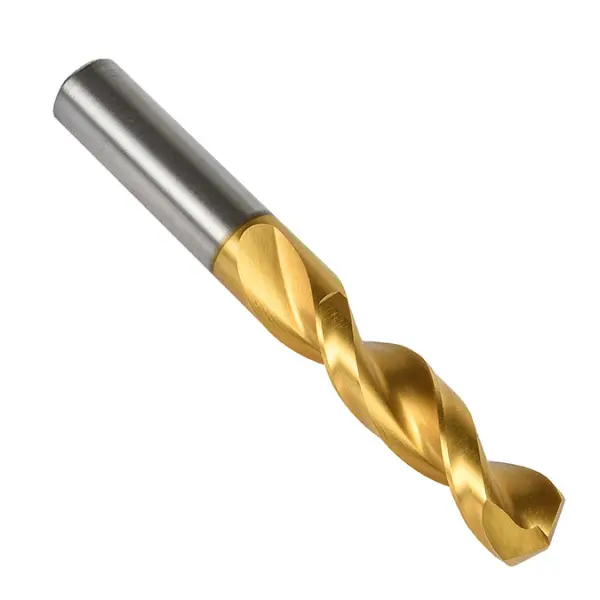

HSS TiN QC 135° Stub Drill Short ANSI 5/16 inch

Part Number: 6705997463

Manufacturers Name: Dormer Pramet

Manufacturers Part #: 5997463

Minimum order: 6 EA

$21.17

$21.17 EA

Quantity EA

ADD TO CART QUOTE VOLUME DISCOUNT

Product Details

TiN Coating increases wear resistance and improves tool life. Heavy-Duty Parabolic Flute design for efficient chip removal.Allows greater drilling depths in one pass. Low thrust design selfcentering Split Point for eaisier penetration.

Features

ANSI Drill Standard
^HSS (high speed steel) Material
^Straight Shank
^135° Drill Point Angle
^Short Drill Length
^PFX HSCo End Shot
^TiN Coating

Specifications

Drills Bit Size: 5/16
Drills Bit Size (Decimal Inch): 0.3125
Drill Point Angle: 135
Body Material Code: High Speed Steel
Surface Treatment/Coating: TiN/Gold
Application Type: General Drilling
Coolant: External cooling supply
Cutting Direction: Right Hand
Overall Length: 2.13/16
Flute Length (Inch): 1.5/8
P - Steel and cast steel: Priority usage
M - Stainless steel: Possible usage
K - Cast iron: Possible usage
N - Non-ferrous metals: Priority usage
Product Family Code: QC41G
Shank Type: Cylindrical Shank
Drilling Depth: Depth 3 x d
Drill Length: Short
Country of Origin: France

Technical Resources

Dormer Pramet Catalog
