Home › Holemaking › Solid Drill Bits › Screw Machine HHS Drills › HSS Steam Oxide 135° Stub Drill Short DIN 1897 11.00 mm
Click image to enlarge

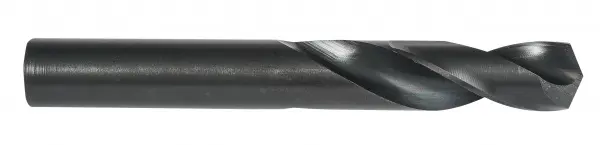

HSS Steam Oxide 135° Stub Drill Short DIN 1897 11.00 mm

Part Number: 6706000984
Manufacturers Name: Dormer Pramet
Manufacturers Part #: 6000984
Minimum order: 6 EA
$11.54
$11.54 EA
Quantity EA
ADD TO CARTQUOTE VOLUME DISCOUNT

Product Details

Low thrust design self centering Split Point for easier penetration. Steam Oxide surface treatment for increased wear resistance & lubricity.
Features
  • Steam Oxide Coating
  • ^HSS (high speed steel) Material
  • ^Straight Shank
  • ^135° Drill Point Angle
  • ^Split Point End Shot
  • ^DIN 1897 Drill Standard
  • ^Short Drill Length
Specifications
  • Drills Bit Size: 11.00 mm
  • Drills Bit Size (Decimal Inch): 0.4331
  • Drill Point Angle: 135
  • Body Material Code: High Speed Steel
  • Surface Treatment/Coating: Steam Tempered/Black
  • Application Type: General Drilling
  • Coolant: External cooling supply
  • Cutting Direction: Right Hand
  • Spiral Form: Standard Spiral
  • Overall Length: N/A
  • Flute Length (mm): 47 mm
  • P - Steel and cast steel: Priority usage
  • M - Stainless steel: Possible usage
  • K - Cast iron: Priority usage
  • N - Non-ferrous metals: Possible usage
  • S - High-temperature alloys: Possible usage
  • Product Family Code: 4ASM
  • Shank Type: Cylindrical Shank
  • Drilling Depth: Depth 2.5 x d
  • Drill Length: Short
  • Country of Origin: Brazil
