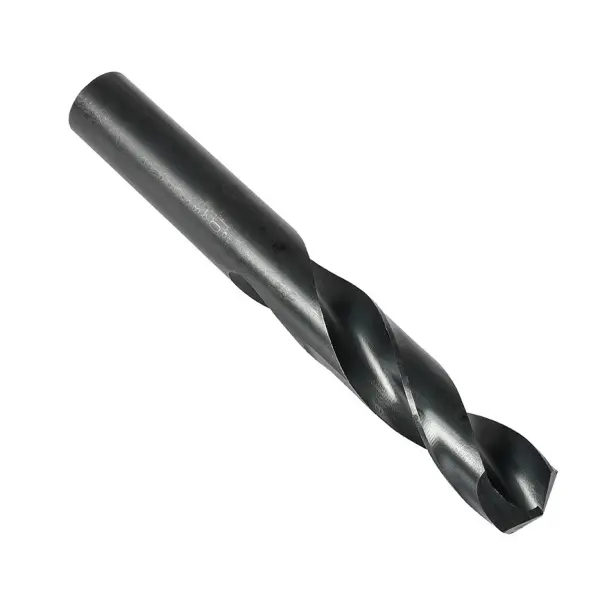

Click image to enlarge

HSS Steam Oxide 135° NAS907C Stub Drill Short NAS907 N9

Part Number: 6705998685
Manufacturers Name: Dormer Pramet
Manufacturers Part #: 5998685
Minimum order: 12 EA
$2.84
$2.84 EA
Quantity EA
ADD TO CARTQUOTE VOLUME DISCOUNT

Product Details

Low thrust design self centering Split Point for easier penetration. Steam Oxide surface treatment for increased wear resistance and lubricity
Features
  • Steam Oxide Coating
  • ^HSS (high speed steel) Material
  • ^Straight Shank
  • ^135° Drill Point Angle
  • ^Split Point End Shot
  • ^Short Drill Length
  • ^NAS907 Drill Standard
Specifications
  • Drills Bit Size: N9
  • Drills Bit Size (Decimal Inch): 0.196
  • Drill Point Angle: 135
  • Body Material Code: High Speed Steel
  • Surface Treatment/Coating: Steam Tempered/Black
  • Application Type: General Drilling
  • Coolant: External cooling supply
  • Cutting Direction: Right Hand
  • Overall Length: 2.1/4
  • Flute Length (Inch): 1.3/16
  • P - Steel and cast steel: Priority usage
  • M - Stainless steel: Possible usage
  • K - Cast iron: Priority usage
  • N - Non-ferrous metals: Possible usage
  • S - High-temperature alloys: Possible usage
  • Product Family Code: R41C
  • Shank Type: Cylindrical Shank
  • Drilling Depth: Depth 2.5 x d
  • Drill Length: Short
  • Country of Origin: Brazil
