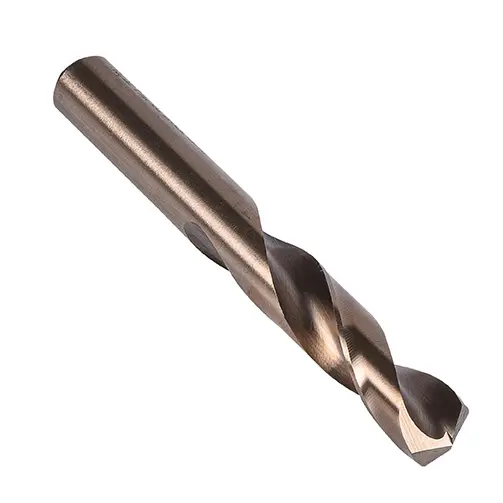

HSS-E Bronze 135° Stub Drill Short ANSI 9/32 inch

Part Number: 6705996015
Manufacturers Name: Dormer Pramet
Manufacturers Part #: 5996015
Minimum order: 12 EA
$7.66
$7.66 EA
Quantity EA
ADD TO CARTQUOTE VOLUME DISCOUNT

Product Details

Low thrust design self centering Split Point for easier penetration. Cobalt base material with Bronze Oxide for wear resistance and lubricity.
Features
  • ANSI Drill Standard
  • ^Straight Shank
  • ^Bronze Coating
  • ^135° Drill Point Angle
  • ^HSS-E (cobalt high speed steel) Material
  • ^WARNING: Cancer - www.P65Warnings.ca.gov
  • ^Split Point End Shot
  • ^Short Drill Length
Specifications
  • Drill Bit Size: 9/32
  • Drill Bit Size Decimal: 0.2813
  • Drill Point Angle: 135
  • Material: Cobalt
  • Flute Length: 1.1/2
  • Application Type: General Drilling
  • Coolant: External cooling supply
  • Cutting Direction: Right Hand
  • Coating: Steam Tempered/Bronze
  • Overall Length: 2.11/16
  • P - Steel and cast steel: Priority usage
  • M - Stainless steel: Priority usage
  • K - Cast iron: Priority usage
  • N - Non-ferrous metals: Possible usage
  • S - High-temperature alloys: Priority usage
  • Product Family Code: M40CO
  • Shank Type: Cylindrical Shank
  • Drilling Depth: Depth 2.5 x d
  • Drill Length: Short
  • Country of Origin: Brazil
