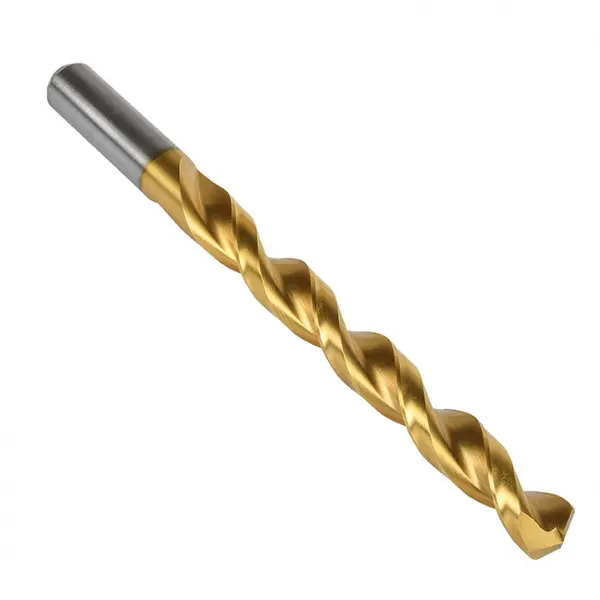

HSS TiN QC 135° Jobber Drill Jobber DIN 338 2.50 mm

Part Number: 6705996469

Manufacturers Name: Dormer Pramet

Manufacturers Part #: 5996469

Minimum order: 12 EA

$8.14

$8.14 EA

Quantity EA

ADD TO CART QUOTE VOLUME DISCOUNT

Product Details

TiN Coating increases wear resistance and improves tool life.Heavy-Duty Parabolic Flute design for efficient chip removal.Allows greater drilling depths in one pass. Low thrust designself centering Split Point for easier penetration.

Features

HSS (high speed steel) Material
^Jobber Drill Length
^Straight Shank
^135° Drill Point Angle
^DIN 338 Drill Standard
^PFX HSCo End Shot
^TiN Coating

Specifications

Drills Bit Size: 2.50 mm
Drills Bit Size (Decimal Inch): 0.0984
Drill Point Angle: 135
Body Material Code: High Speed Steel
Surface Treatment/Coating: TiN/Gold
Application Type: General Drilling
Coolant: External cooling supply
Cutting Direction: Right Hand
Overall Length: N/A
Flute Length (mm): 30 mm
P - Steel and cast steel: Priority usage
M - Stainless steel: Possible usage
K - Cast iron: Possible usage
N - Non-ferrous metals: Priority usage
Product Family Code: QC21GM
Shank Type: Cylindrical Shank
Drilling Depth: Depth 4 x d
Drill Length: Jobber
Country of Origin: France
