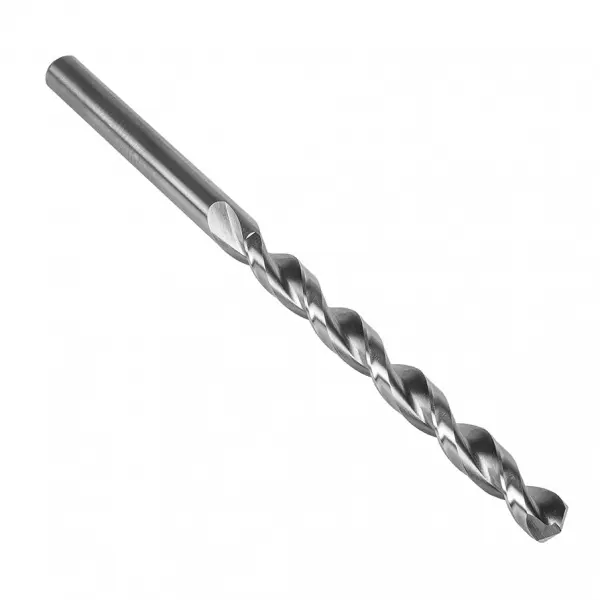

HSS Bright QC 135° Taper Length Drill Long ANSI 15/64 inch

Part Number: 6705997217
Manufacturers Name: Dormer Pramet
Manufacturers Part #: 5997217
Minimum order: 12 EA
$29.54
$29.54 EA
Quantity EA

Product Details

Bright Finish improves chip flow in soft or non-ferrous materials. Heavy-Duty Parabolic Flute design for efficient chipremoval. Allows greater drilling depths in one pass.Low thrust design self centering Split Point for easierpenetration.
Features
  • ANSI Drill Standard
  • ^HSS (high speed steel) Material
  • ^Bright Coating
  • ^Straight Shank
  • ^135° Drill Point Angle
  • ^Long Drill Length
  • ^PFX HSCo End Shot
Specifications
  • Drills Bit Size: 15/64
  • Drills Bit Size (Decimal Inch): 0.2344
  • Drill Point Angle: 135
  • Body Material Code: High Speed Steel
  • Surface Treatment/Coating: Original surface/Bright Silver
  • Application Type: General Drilling
  • Coolant: External cooling supply
  • Cutting Direction: Right Hand
  • Overall Length: 6.1/8
  • Flute Length (Inch): 3.3/4
  • P - Steel and cast steel: Priority usage
  • M - Stainless steel: Possible usage
  • K - Cast iron: Possible usage
  • N - Non-ferrous metals: Priority usage
  • S - High-temperature alloys: Possible usage
  • Product Family Code: QC91P
  • Shank Type: Cylindrical Shank
  • Drilling Depth: Depth 6 x d
  • Drill Length: Long
  • Country of Origin: France
