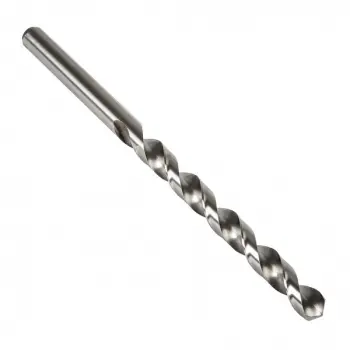

HSS Bright 118° Taper Length Drill Long ANSI 5/32 inch

Part Number: 6705998913
Manufacturers Name: Dormer Pramet
Manufacturers Part #: 5998913
Minimum order: 12 EA
$13.69
$13.69 EA
Quantity EA
ADD TO CARTQUOTE VOLUME DISCOUNT

Product Details

High Helix and Bright Finish for better chip flow in soft or non-ferrous materials. Longer Flute and Overall length for depth and reach.
Features
  • 118° Drill Point Angle
  • ^ANSI Drill Standard
  • ^HSS (high speed steel) Material
  • ^Bright Coating
  • ^Straight Shank
  • ^Long Drill Length
  • ^Standard - Quick Helix End Shot
Specifications
  • Drills Bit Size: 5/32
  • Drills Bit Size (Decimal Inch): 0.1563
  • Drill Point Angle: 118
  • Body Material Code: High Speed Steel
  • Surface Treatment/Coating: Original surface/Bright Silver
  • Application Type: General Drilling
  • Coolant: External cooling supply
  • Cutting Direction: Right Hand
  • Spiral Form: Quick Spiral
  • Overall Length: 5.3/8
  • Flute Length (Inch): 3"
  • N - Non-ferrous metals: Priority usage
  • Product Family Code: R51FS
  • Shank Type: Cylindrical Shank
  • Drilling Depth: Depth 6 x d
  • Drill Length: Long
  • Country of Origin: Brazil
