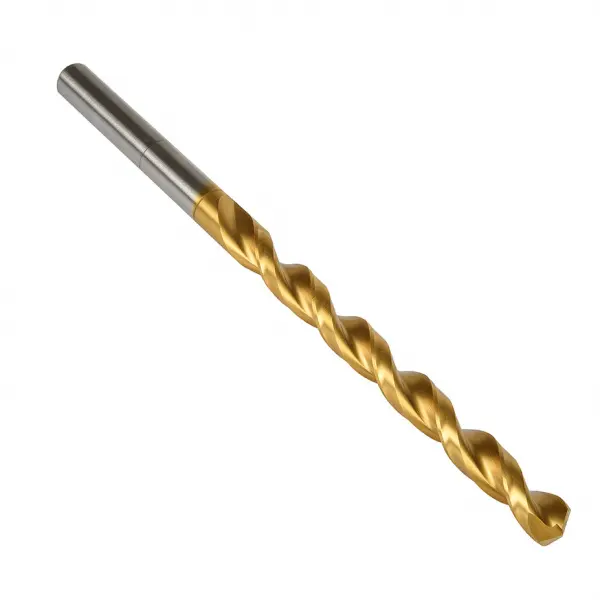

HSS TiN QC 135° Taper Length Drill Long DIN 340 2.00 mm

Part Number: 6705996804

Manufacturers Name: Dormer Pramet

Manufacturers Part #: 5996804

Minimum order: 12 EA

$17.20

$17.20 EA

Quantity EA

ADD TO CART QUOTE VOLUME DISCOUNT

Product Details

TiN Coating increases wear resistance and improves tool life. Heavy-Duty Parabolic Flute design for efficient chipevacuation. Allows greater drilling depths in one pass.Low thrust design self centering Split Point for easierpenetration.

Features

HSS (high speed steel) Material
^Straight Shank
^135° Drill Point Angle
^Long Drill Length
^DIN 340 Drill Standard
^PFX HSCo End Shot
^TiN Coating

Specifications

Drills Bit Size: 2.00 mm
Drills Bit Size (Decimal Inch): 0.0787
Drill Point Angle: 135
Body Material Code: High Speed Steel
Surface Treatment/Coating: TiN/Gold
Application Type: General Drilling
Coolant: External cooling supply
Cutting Direction: Right Hand
Overall Length: N/A
Flute Length (mm): 56 mm
P - Steel and cast steel: Priority usage
M - Stainless steel: Possible usage
K - Cast iron: Possible usage
N - Non-ferrous metals: Priority usage
Product Family Code: QC91GM
Shank Type: Cylindrical Shank
Drilling Depth: Depth 6 x d
Drill Length: Long
Country of Origin: France

Technical Resources

Dormer Pramet Catalog
