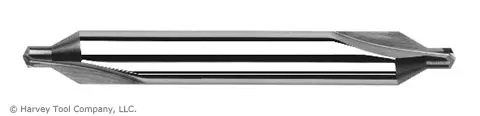

#1 x 100 DEG CARB DRILL/C-SINK

Part Number: 336849530
Manufacturers Name: Solid Carbide Center Drills
Manufacturers Part #: 849530
$24.40
$24.40 EA
Quantity EA
ADD TO CARTQUOTE VOLUME DISCOUNT

Product Details

0.0469" (3/64) Drill DIA x 100° Included Carbide #1 Combined Drill & Countersink DE, 2 Flutes
Features
  • This product can expose you to chemicals including cobalt which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Specifications
  • Profile: Drill
  • Metric Flag: N50
  • Flute Count: N2
  • Point Angle: 118
  • Overall Length: 1.5000" (1-1/2)
  • Shank Diameter: 0.1250" (1/8)
  • Length of Cut: 0.0940"
  • Size: N1
  • Included Angle: 100
  • Angle Per Side: N50
  • Drill Length: 0.0470" (3/64)
  • Drill Diameter: 0.0469" (3/64)
