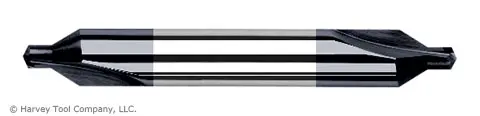

#00 x 90 DEG CARB DRILL/C-SINK, AlTiN

Part Number: 33617910-C3
Manufacturers Name: Solid Carbide Center Drills
Manufacturers Part #: 17910-C3
$33.10
$33.10 EA
Quantity EA
ADD TO CARTQUOTE VOLUME DISCOUNT

Product Details

0.0250" Drill DIA x 90° Included Carbide #00 Combined Drill & Countersink DE, 2 Flutes, AlTiN Coated
Features
  • This product can expose you to chemicals including cobalt which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Specifications
  • Profile: Drill
  • Metric Flag: 90
  • Flute Count: N2
  • Point Angle: 118
  • Overall Length: 1.5000" (1-1/2)
  • Shank Diameter: 0.1250" (1/8)
  • Length of Cut: 0.0830"
  • Size: 90
  • Included Angle: 90
  • Angle Per Side: N45
  • Drill Length: 0.0250"
  • Drill Diameter: 0.0250"
